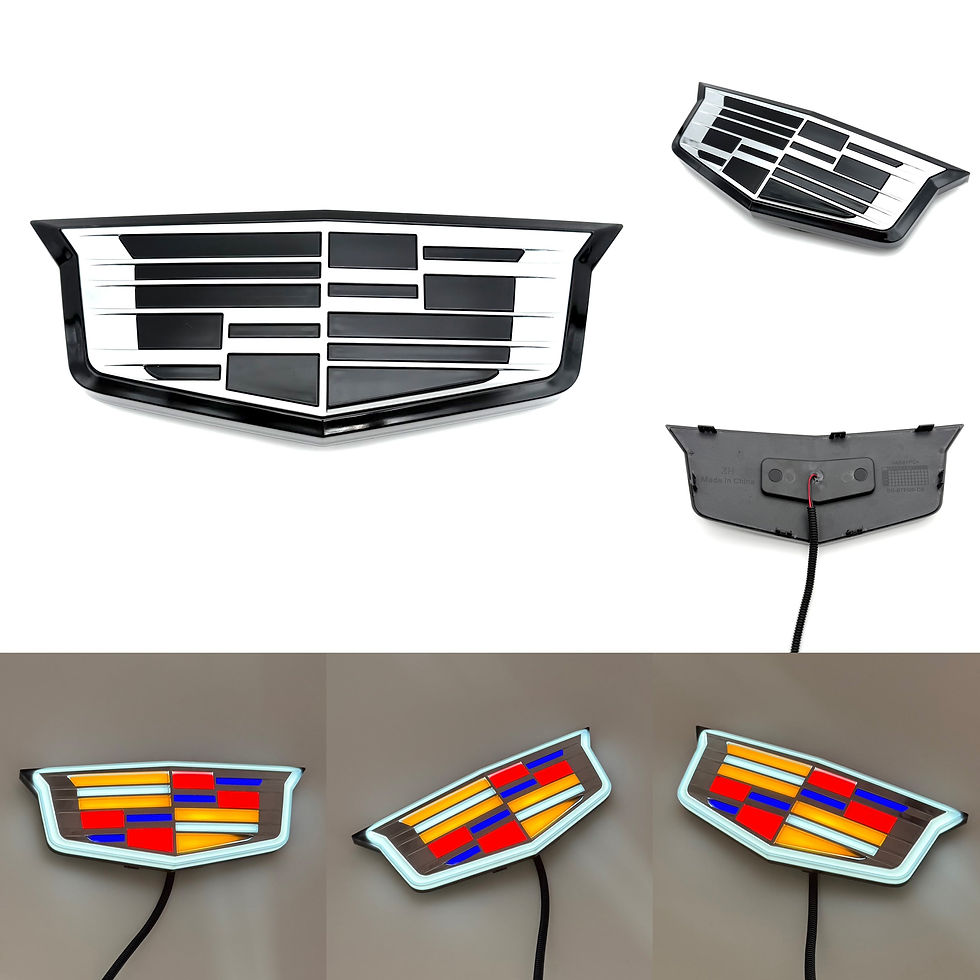

Cadillac Grille LED Dynamic Crystal Illuminated Emblem

⚠️ Compatibility Notice (Important)
This product is NOT compatible with the following models:
Cadillac CT4-V / CT4-V Blackwing / CT4 Luxury
Cadillac CT5-V / CT5-V Blackwing / CT5 Luxury
These vehicles are equipped with ACC (Adaptive Cruise Control) sensors located behind the front emblem, which makes installation not possible and not recommended.
Please verify your vehicle configuration before placing an order.

Fit for:
ESCALADE(2015.5-2024)
XT6 (2019.7 - 2025 ) W/O 360 CAMERA
XT5 (2019.5 - 2025 ) W/O 360 CAMERA
XT4 (2020.10 - 2025 ) W/O 360 CAMERA
CT6 (2017 - 2018.11 ) W/O 360 CAMERA
CT5 (2019.9 - 2025 ) W/O 360 CAMERA
CT4 (2020.4 - 2025 ) W/O 360 CAMERA
CT4 / CT5 (2020-2024) W 360 CAMERA
XTS ( 2018-2020 ) W/O 360 CAMERA
CTS (2014- 2019 ) W/O 360 CAMERA

Transform your Cadillac with our premium LED emblem light, specially designed for car modification enthusiasts. This sleek upgrade seamlessly integrates with your vehicle's original design, ensuring no difference from factory standards. During the day, the lights remain subtle, but at night, they come alive, illuminating your Cadillac logo with a dazzling, futuristic glow. Perfect for CT4, CT5, and ATS models, this LED emblem light enhances your car's noble descent, adding a touch of high-tech sophistication. Elevate your ride's style and stand out on the road—day or night. Upgrade now and make your Cadillac truly unforgettable!
Installation instructions:
1, Remove the old logo,
2, And then install the new logo light with 3M glue and clips, press it tightly, Align the buckle and push it in, press it tightly,
3, Connect the wires, the red wire is connected to the daytime running lights, and the black wire is connected to any iron.
XT5 Power Connection:  (top left image)
Remove the original connector clip. Insert the positive and negative pins through the clip.
Left #1: Negative pin
Left #2: Positive pin
Secure the wires with a zip tie.
CT5 Headlight Connector Power Source: (Top right image)
The 4th wire from the right (black) = Negative
The 2nd wire from the left (red) = Positive
Insert the pins into the corresponding wires and secure with a zip tie.
XT6 Power Connection: (Lower left image)
At this headlight connector position, insert the positive and negative pins from the back side of the corresponding wires.
Secure everything with a zip tie.
XT4 Power Connection: (Lower middle image)
Remove the connector clip.
Insert the positive pin through the clip into the 3-wire position; insert the negative pin into the 2-wire position.
Reinstall the clip.
Secure the wires with a zip tie.
CT4 Power Connection: (bottom right image)
The third blue wire = Positive
The negative wire can be grounded to the vehicle chassis.
